Features

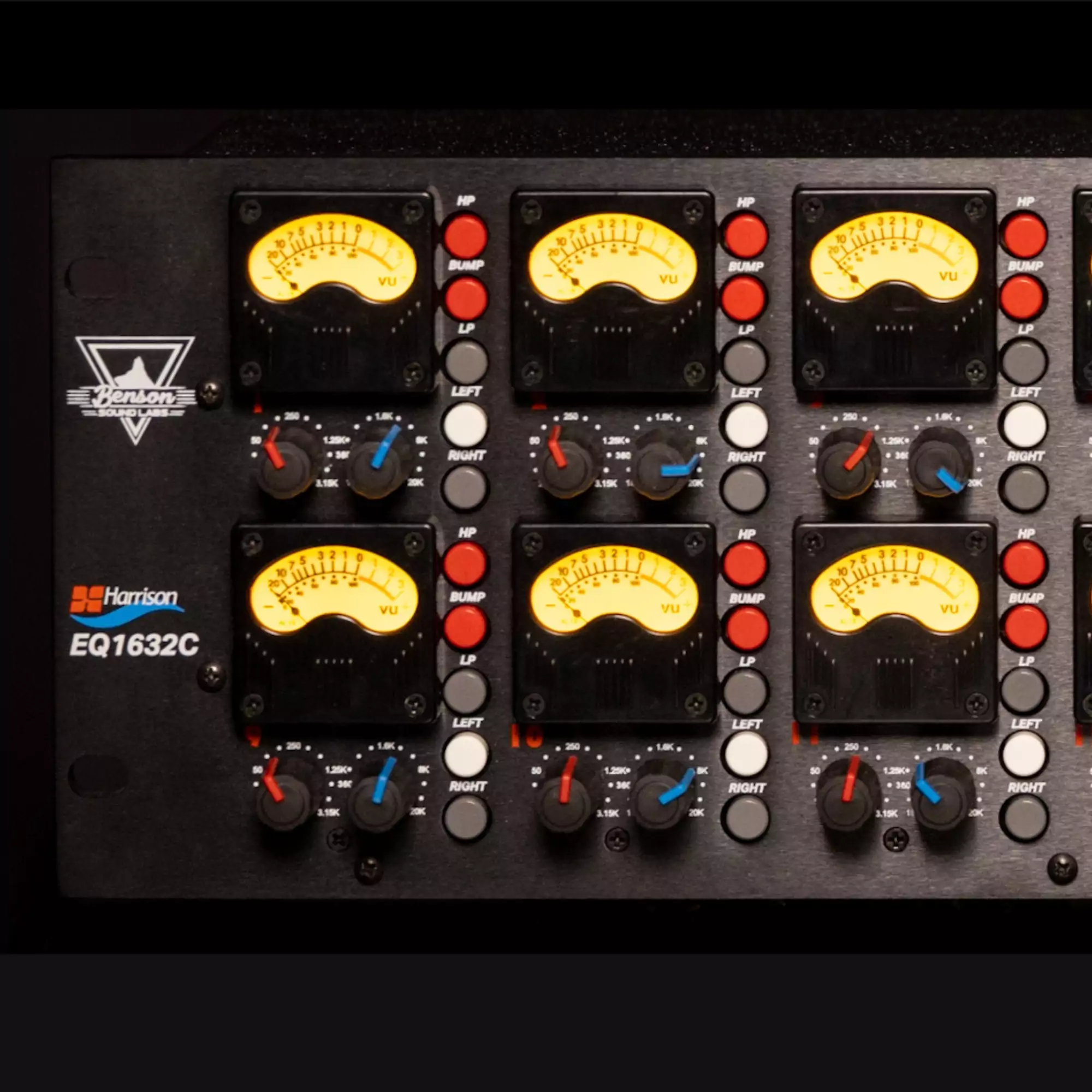

- Each channel features in / out buttons (marked “HP” and “LP”), a “Bump” button, 2 sweepable filter knobs, VU input meter and Left/Right BUSS assign buttons
- The main section includes MIX output and HEADPHONE output for variable controls

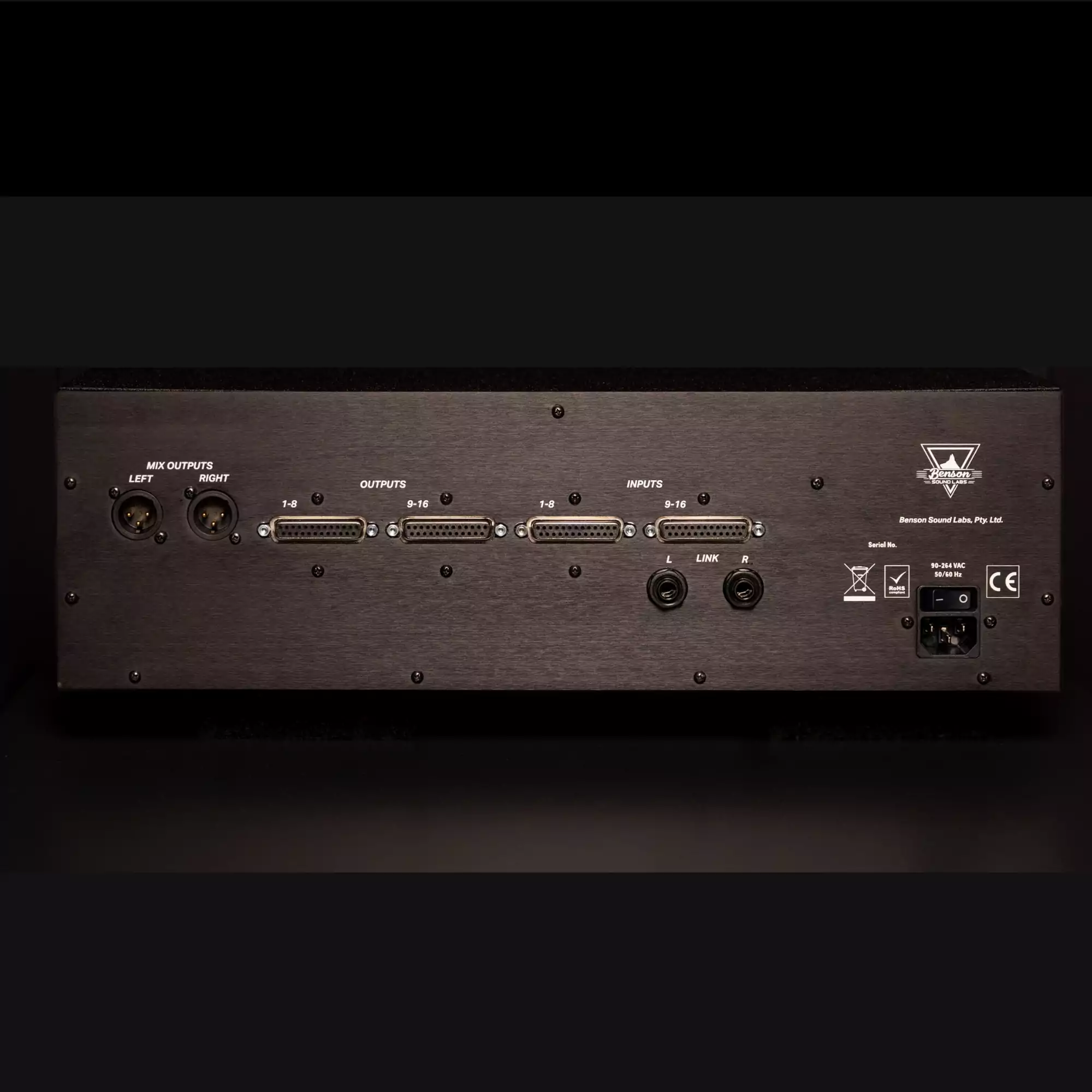

- The rear includes 16 channels of DIRECT IO and LEFT/ RIGHT MIX outputs for SUMMING and BUSS feed
- A stereo LINK on 1/4” allows cascading and expansion.
Overview
When the filters are engaged, the variable filter knobs adjust the desired frequency. The HPF knob (red) allows adjustment from 25Hz to 3.15KHz. The LPF knob (white) allows adjustment from 180Hz to 20KHz. When engaged, the unique “Bump” button creates a resonant “boost” just above the selected HPF frequency – re-creating the signature low-end of the Harrison 32-series consoles. This resonance accentuates audible low frequencies while rolling off unneeded sub-low energy. Combined with proper execution of the LPF, the “Bump” feature makes the 1632C the perfect piece to fatten kick drums, beef up bass lines, and add body to guitar tracks.

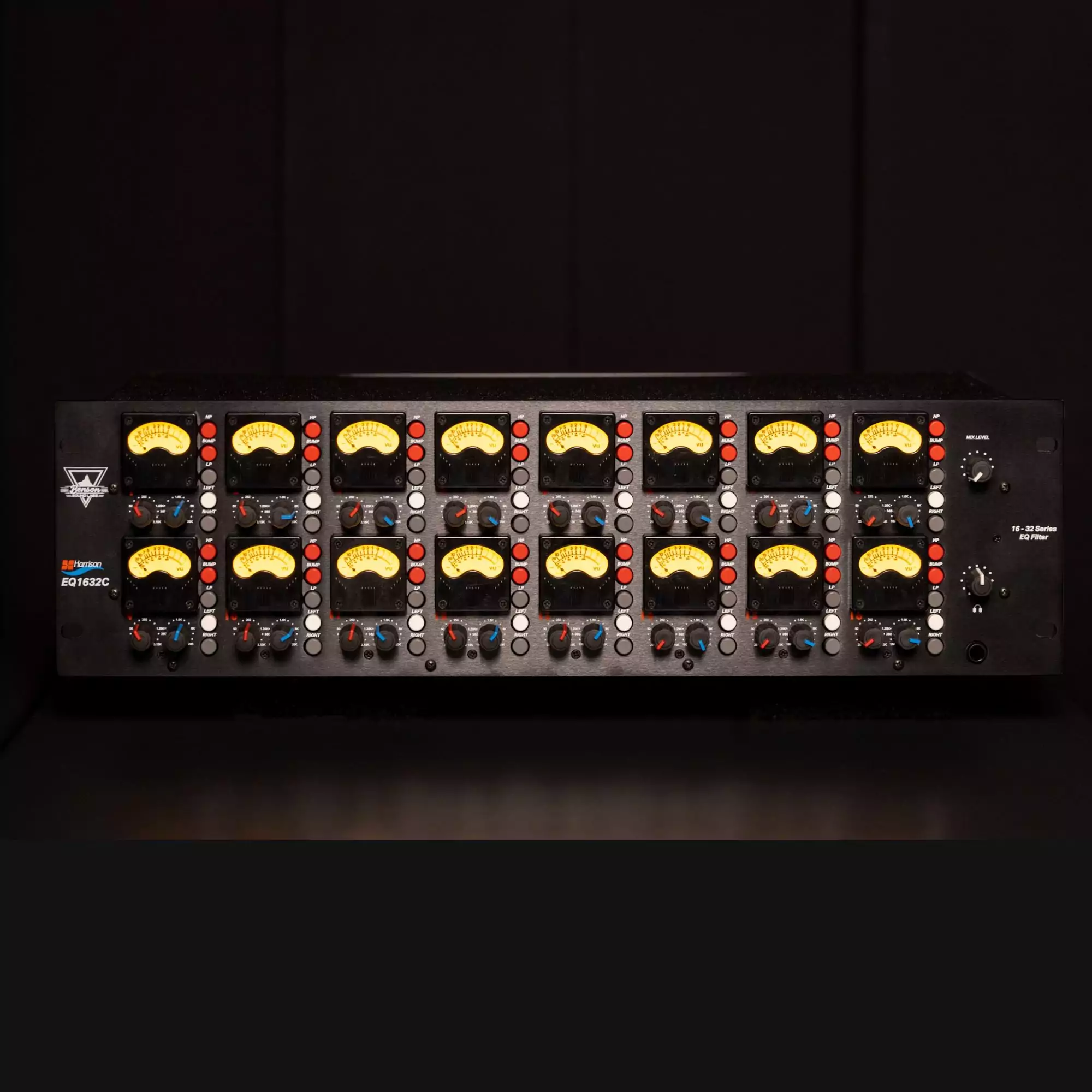

The 1632 is an all analog 16 Channel Summing MIXER providing Filter/ EQ on each channel. A total of 16 direct inputs are available from your DAW which can be bussed to the MIX Outputs to return the SUMM mix utilising that famous Harrison Sound with all the headroom of Analog.
The audio connections are provided on AES59 (Tascam DB-25) connectors. These connectors match the output of the Lineage Super 8 Mic Preamp/ Summing Mixer. When used in tandem, the 1632C Filter/ EQ Unit and the Lineage Super 8 Mic Preamp/ Summing Mixer provide a complete 8-channel inputted SUMMING solution with preamp, filters/ EQ, bussing, headphone monitoring and metering.
- Input Impedance 10K ohms
- Output Impedance < 50 ohms +24 dBu +24 dBu
- Maximum Input Level +28bdu
- Maximum Output Level +28 dBu
- THD 0.001% at +26dbu
- Freq. Response (no filters) 20Hz-20kHz +/- 0.25 dB
- Freq. Response (filters in) 20Hz-20kHz +0, -3 dB
- HP / LP Filter Slope 12 dB / Octave
